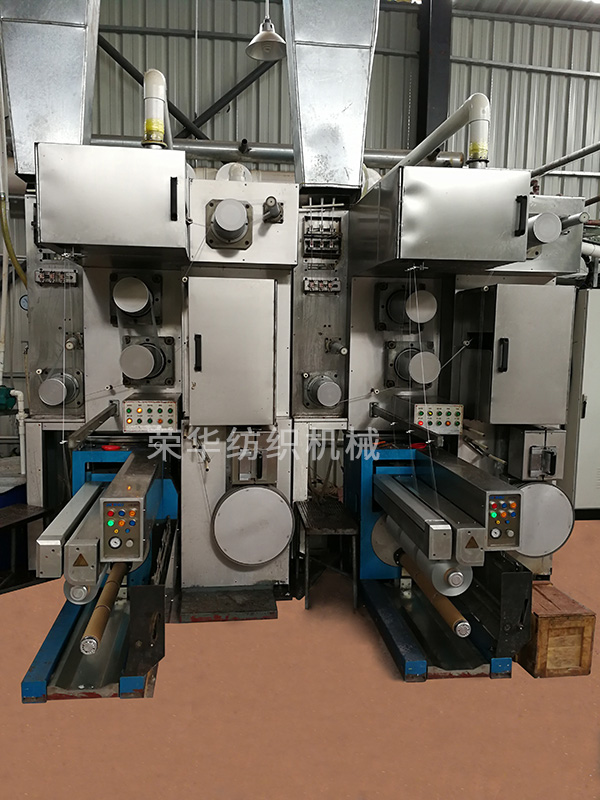

PP BCF (monochrome and color) equipment

PP BCF spinning machine is mainly used for spinning equipment from 1000 to 3300 denier polypropylene bulked continuous filament. Its raw material is polypropylene slice.

PP BCF yarn mainly used for: carpets, industrial filter, and other fields.

  The basic parameters of the device:

  Finished fineness: 1000 to 3300 (Dan)

  Mechanical speed (maximum): 3000m / min

  Process speed (maximum): 1600m / min ~ 2000m / min

Parts per tow Number: 2,3 Beam

Equipment main components:

1, the automatic feeder

2, masterbatch injection machine

3, screw extruder

4, pre-filter (selected by the user)

5 spinning boxes and components

6, metering pumps and drive

7, the side hair, air conditioning units and corridor

8, oiling device, pre-network device

9, drawing heat roller

10, puffing, a cold drum

11, winding rack

12, the network device

13, automatic winding machine

14, electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.
