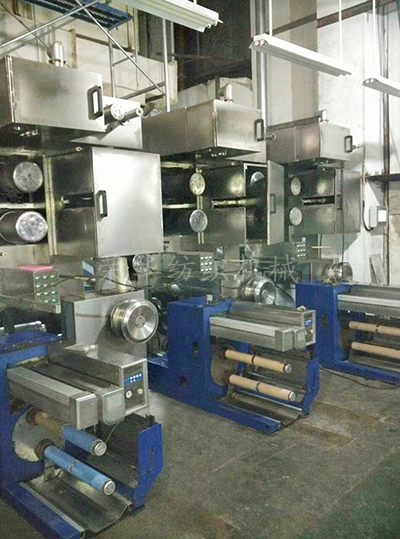

Polyester BCF spinning equipment

Polyester BCF spinning machine is mainly used for spinning equipment from 1000~3300 denier Polyester bulked continuous filament. Its raw material polyester chips.

Polyester BCF yarn mainly used for: carpets, industrial filter, and other fields.

  The basic parameters of the device:

  Finished fineness: 1000~3300 (Dan)

  Mechanical speed (maximum): 3000m / min

  Process speed (maximum): 1600m / min ~ 2000m / min

Parts per tow Number: 2,3 Beam

Equipment main components:

1, screw extruder

2, melt filter

3 spinning boxes and components

4, biphenyl generator and piping systems

5, metering pumps and drive

6, the side hair

7 corridor

8, air conditioning units

9, oiling device, pre-network device

11, drawing heat roller

12, puffing, a cold drum

13, winding rack

14, the network device

15, automatic winding machine

16, electronic control system: with screw voltage control cabinet, spinning box temperature control cabinets, metering pumps, oil pump frequency counters, frequency counters and winding conventional electrical control system.
